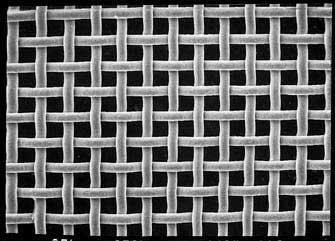

產品 網印用高級絲網 asada-mesh   ASADA MESH PRODUCT GUIDANCE Types of Weaving Plain WeaveWoven of vertical and horizontal wires crossing each other, plain weave is used as filters for such purposes as screen printing. Screening and general strainer. Twilled WeaveConsisting of pairs of vertical and horizontal wires straddling each other, twilled weave is used as filters for such purposes as screening and filtering of densities higher than those suited for plain weave. Plain Dutch WeaveAs the wire netting of the plain Dutch weave is fine in comparison to the diameter of the wire thread of which it is made, this woven wire cloth is used for all kinds of filtering. Twilled Dutch WeaveWith twilled Dutch weave consisting of pairs of twilled wires striding. Each other, this wire cloth is used as a filter for filtering of densities higher than those suited for plain Dutch weave. Other weaving types available are Reverse Dutch Weave and 5-Heddle Weave MESH SPECIFICATION (EXCERPT) Mesh Count Wire diameter Aperture Size Open Area Ratio Thickness as woven CalenderedThickness (1) Calendered Thickness (2) (/inch) (mm) (mm) (%) (Z) Soft-Calendered Heavy-Calendered 60 0.120 0.303 51 225-245 �@ �@ 60 0.140 0.283 45 265-285 �@ �@ 70 0.070 0.293 65 135-143 �@ �@ 70 0.076 0.287 62 145-155 �@ �@ 80 0.050 0.268 71 96-104 �@ �@ 80 0.100 0.218 47 188-200 �@ �@ 80 0.120 0.198 39 230-250 �@ �@ 80 0.094 0.224 50 178-190 �@ �@ 100 0.030 0.224 78 56-60 �@ �@ 100 0.050 0.204 65 98-103 �@ �@ 100 0.076 0.178 49 146-158 �@ �@ 100 0.080 0.174 47 153-163 �@ �@ 100 0.100 0.154 37 195-215 �@ �@ 105 0.076 0.166 47 148-160 �@ �@ 120 0.066 0.146 47 127-137 �@ �@ 120 0.080 0.132 39 155-170 �@ �@ 135 0.058 0.130 48 112-122 �@ �@ 145 0.055 0.120 47 105-115 �@ �@ 150 0.060 0.109 42 115-125 �@ �@ 150 0.066 0.103 37 127-137 �@ �@ 165 0.045 0.109 50 90-100 85-89 70-74 165 0.050 0.104 46 98-106 �@ �@ 180 0.045 0.096 46 93-103 �@ �@ 180 0.050 0.091 42 98-105 �@ �@ 200 0.030 0.097 58 58-64 56-60 45-49 200 0.040 0.087 47 78-86 75-79 63-67 200 0.050 0.077 37 96-104 �@ �@ 200 0.053 0.074 34 101-109 �@ �@ 230 0.028 0.082 56 54-58 52-56 43-47 230 0.035 0.075 46 72-78 65-69 54-58 250 0.025 0.077 57 48-52 44-48 38-42 250 0.028 0.074 53 54-58 51-55 43-47 250 0.030 0.072 50 59-65 55-59 43-47 250 0.035 0.067 43 75-81 68-72 55-59 250 0.040 0.062 37 87-93 78-82 65-69 270 0.035 0.059 39 75-81 68-72 56-60 280 0.025 0.066 53 48-54 46-50 37-41 280 0.030 0.061 45 62-68 57-61 47-51 280 0.035 0.056 38 75-81 68-72 56-60 300 0.030 0.055 42 66-70 58-62 48-52 325 0.023 0.055 50 48-52 42-46 36-40 325 0.028 0.050 41 62-66 54-58 44-48 325 0.030 0.048 38 65-69 58-62 49-53 350 0.025 0.048 43 51-55 48-52 39-43 350 0.020 0.053 53 40-44 36-40 29-33 370 0.025 0.044 41 53-57 47-51 40-44 400 0.018 0.046 52 37-41 32-36 27-31 400 0.020 0.044 47 42-46 36-40 30-34 400 0.023 0.041 41 53-57 44-48 38-42 400 0.025 0.039 37 56-60 48-52 40-44 450 0.020 0.036 41 44-48 37-41 31-35 500 0.015 0.036 50 36-40 30-34 23-27 500 0.018 0.033 42 40-44 34-38 28-32 590 0.013 0.030 49 28-32 24-28 18-22 600 0.017 0.025 36 37-41 33-37 26-30
